OUR PRODUCTS

MANIFOLDS



The distribution point of the underfloor system, our manifolds are stainless steel and manufactured to the highest specification and European standards.

Manifold placement is key to ensuring an efficient underfloor heating system. The best location for Manifold placement is central to the heating zones; by mounting the Manifold centrally, pipe lengths will be kept to a minimum ensuring the heated water reaches the area to be heated evenly and efficiently.



For larger projects, more than one Manifold may be required. If underfloor heating is to be installed across multiple floors, we recommend installing a separate Manifold on each floor.

WhatsApp Image 2020-05-20 at 20.45.44 (1

MANIFOLDS

  • High grade Stainless Steel

  • Available from 2-12 zones

  • Equipped with fill and drain valves

  • Premium flow gauges for ease of commissioning

  • Manifolds will be supplied with either a high temperature or low temperature flow unit

WhatsApp Image 2020-05-14 at 21.09.13.jp
WhatsApp Image 2020-05-20 at 20.46.00.jp

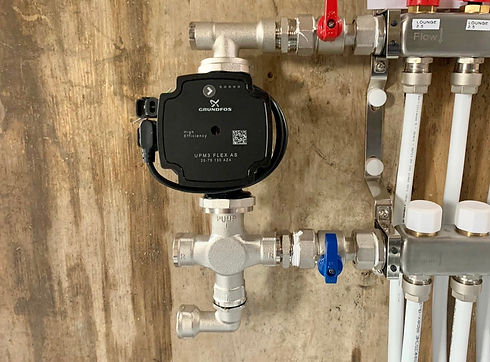

HIGH TEMPERATURE

FLOW UNIT

  • Reduces the temperature from a conventional heat source to that required by underfloor heating

  • Temperature range from 25°C to 60°C

  • Bolts directly onto the manifold and can be fitted to the left- or right-hand side for ease of
    installation

  • Includes premium Grundfos UPM3 pump

WhatsApp Image 2020-05-20 at 20.46.00.jp

LOW TEMPERATURE

FLOW UNIT

  • Suitable for use with a low flow temperature heat source

  • Water temperature flows direct from the heat source through to the manifold

  • Bolts directly onto the manifold and can be fitted to the left- or right-hand side for ease of
    installation

  • Includes premium Grundfos UPM3 pump

WhatsApp Image 2020-05-20 at 20.46.00.jp

SINGLE ZONE SOLUTION

  • A single distribution unit with integral mixing valve and circulation pump

  • This unit can heat up to 25 sq. m and will operate direct from the heat source or bolted onto an existing heating circuit

  • Ideal for smaller extensions or conservatories

WhatsApp Image 2020-06-18 at 22.46.32.jp

MAKE AN ENQUIRY NOW

ON ANY DEVICE.



Our easy to use technical enquiry form helps us to gather information about your project so that we can provide you with free advice and quotation with minimum fuss.
